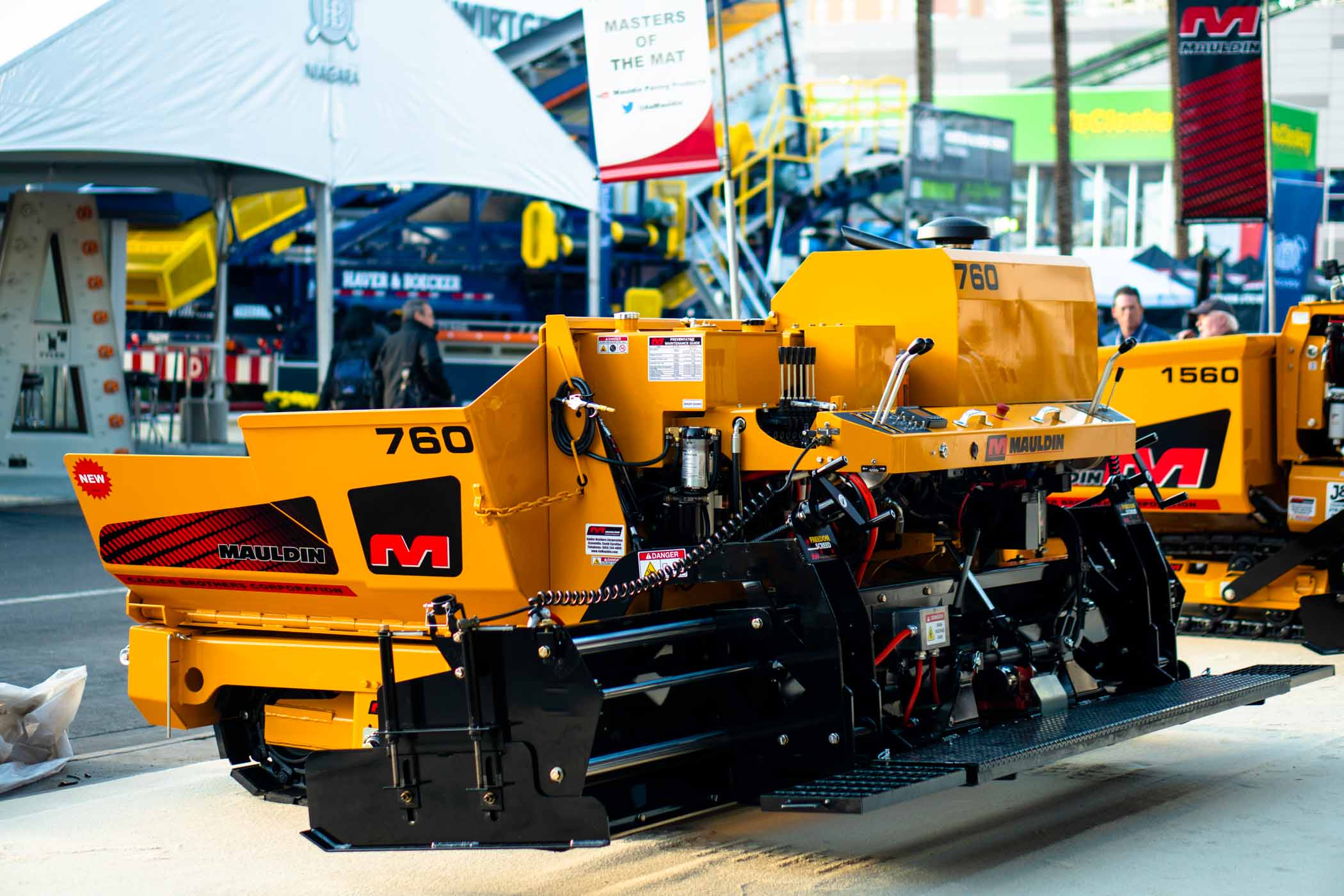

760

  • FREEDOM Screed with Patented Extension Matching System
  • Matching System Seamlessly paves 8’ to 13’
  • Thermostatic Controlled Electrically Heated Screed
  • Crawler Style Poly Track System with Automatic Tensioning
  • Extending Augers and Extending Walkboard
  • 12kw Direct Driven Generator
  • Electronic 2 Speed for High Torque Paving or High-Speed Travel
  • Enclosed Tier 4 Final 49 HP Turbo Charged Four Cylinder Diesel Engine
DOCUMENTATION
BID SPEC
Dimensions:

Length: 118 in (300 cm)
Width: 115 in (292 cm)
Height: 68 in (173 cm)
Weight: 9,700 lb (4,400 kg)
Screed Weight: 2000 lb (907 kg)
Truck Clearance: 20 in (50 cm)
Track Pad Width: 12 in (30 cm)
Track Length: 57 in (145 cm)

Capacities:

Hopper Capacity: 6 Tons (5,443 kg)
Fuel Tank: 20 Gal (75 L)
Hydraulic Tank: 17.5 Gal (66 L)
Washdown Tank: 4.5 Gal (17 L)

Performance:

Paving Widths: 8-13 ft (2.4-4 m)
Paving Depth: 0-6 in (0-15 cm)
Heating Source: 6 Electric Heating Elements
Augers: 2 Extension Mounted
Paving Speed: 0 – 115 fpm (43 mpm)
Travel Speed: 0-280 fpm (73 mpm)

Engine

Manufacturer: Kubota
Displacement Liters:
Tier 4 Final
HP: 49 hp
