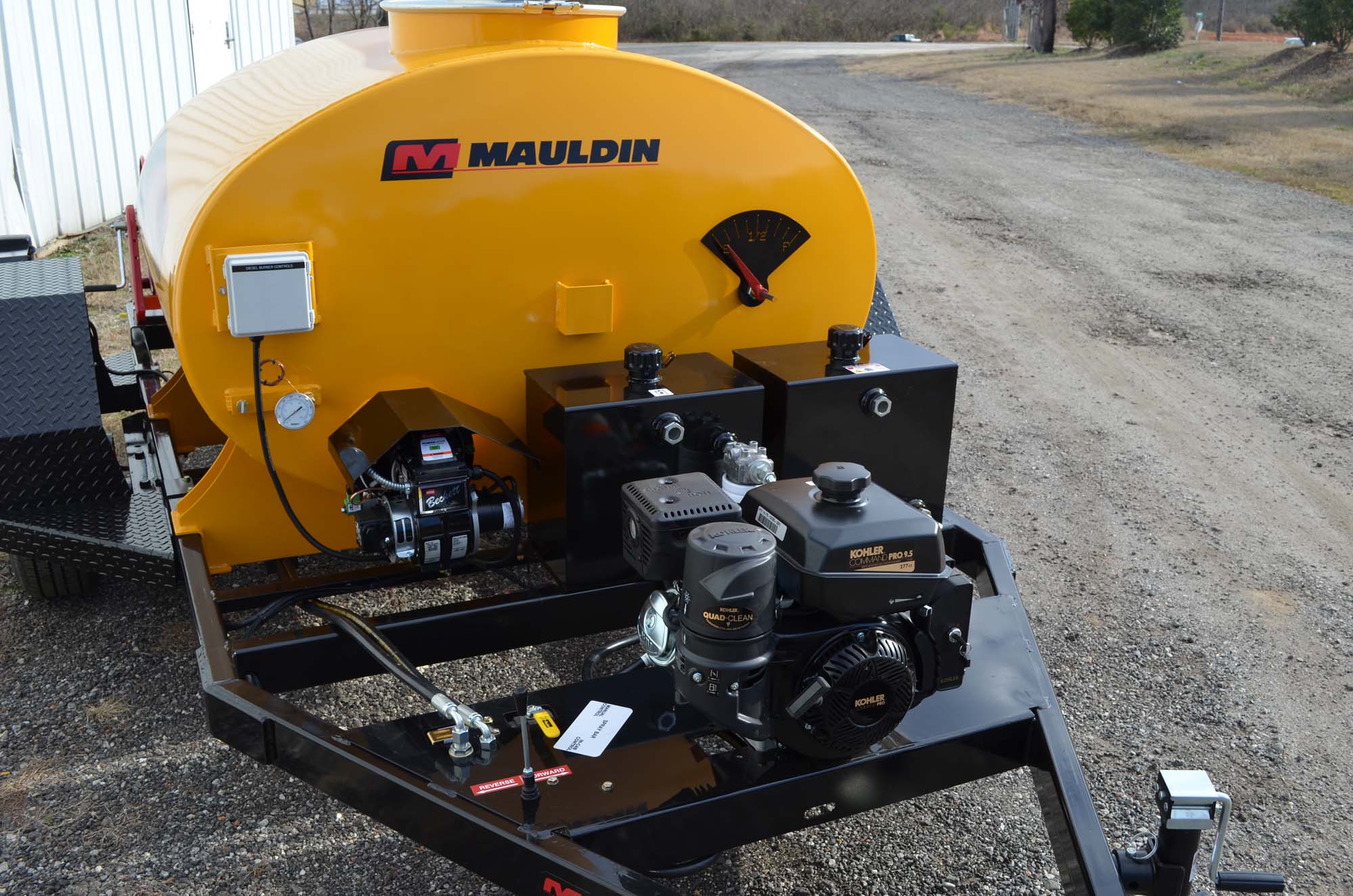

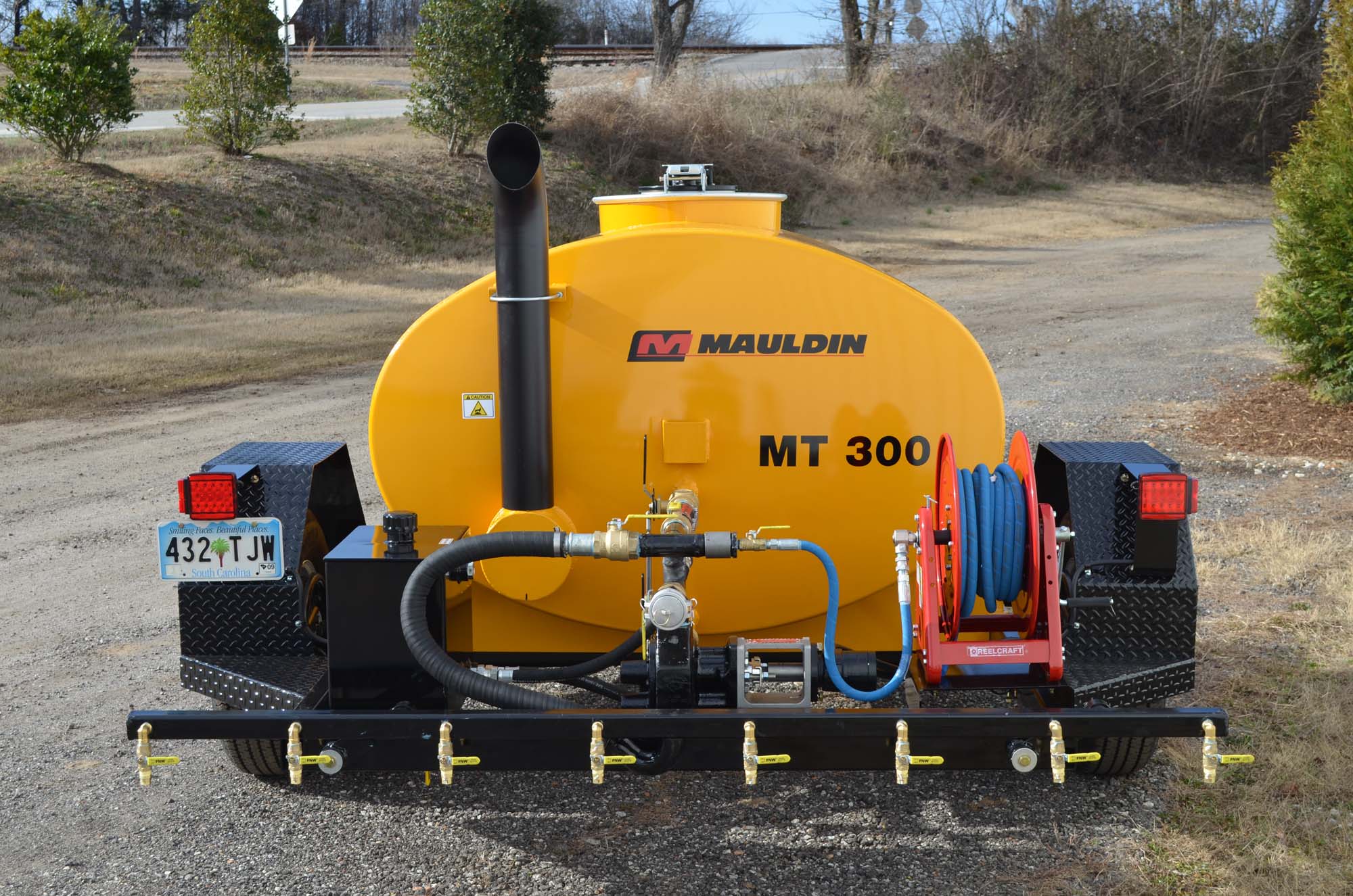

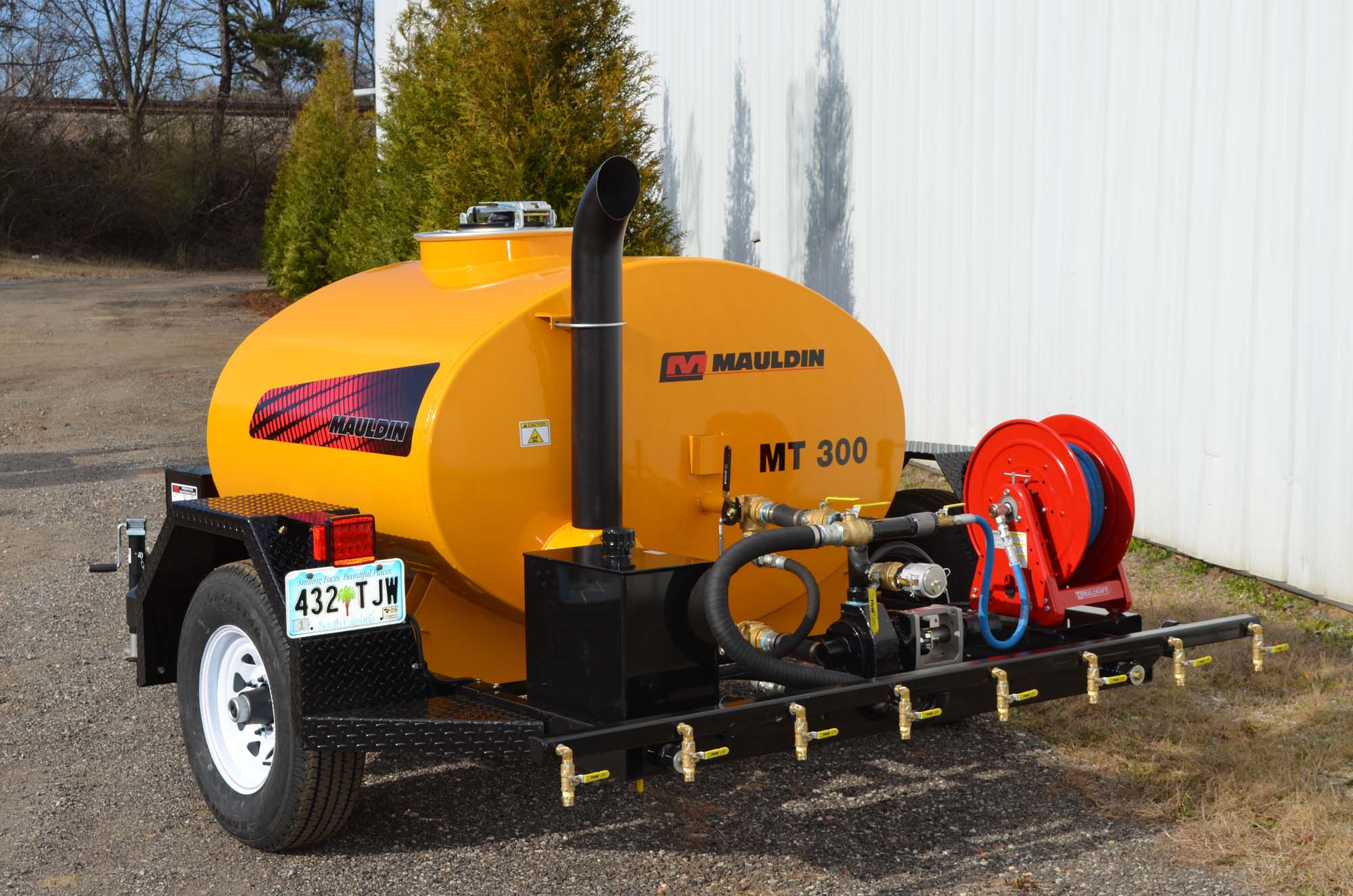

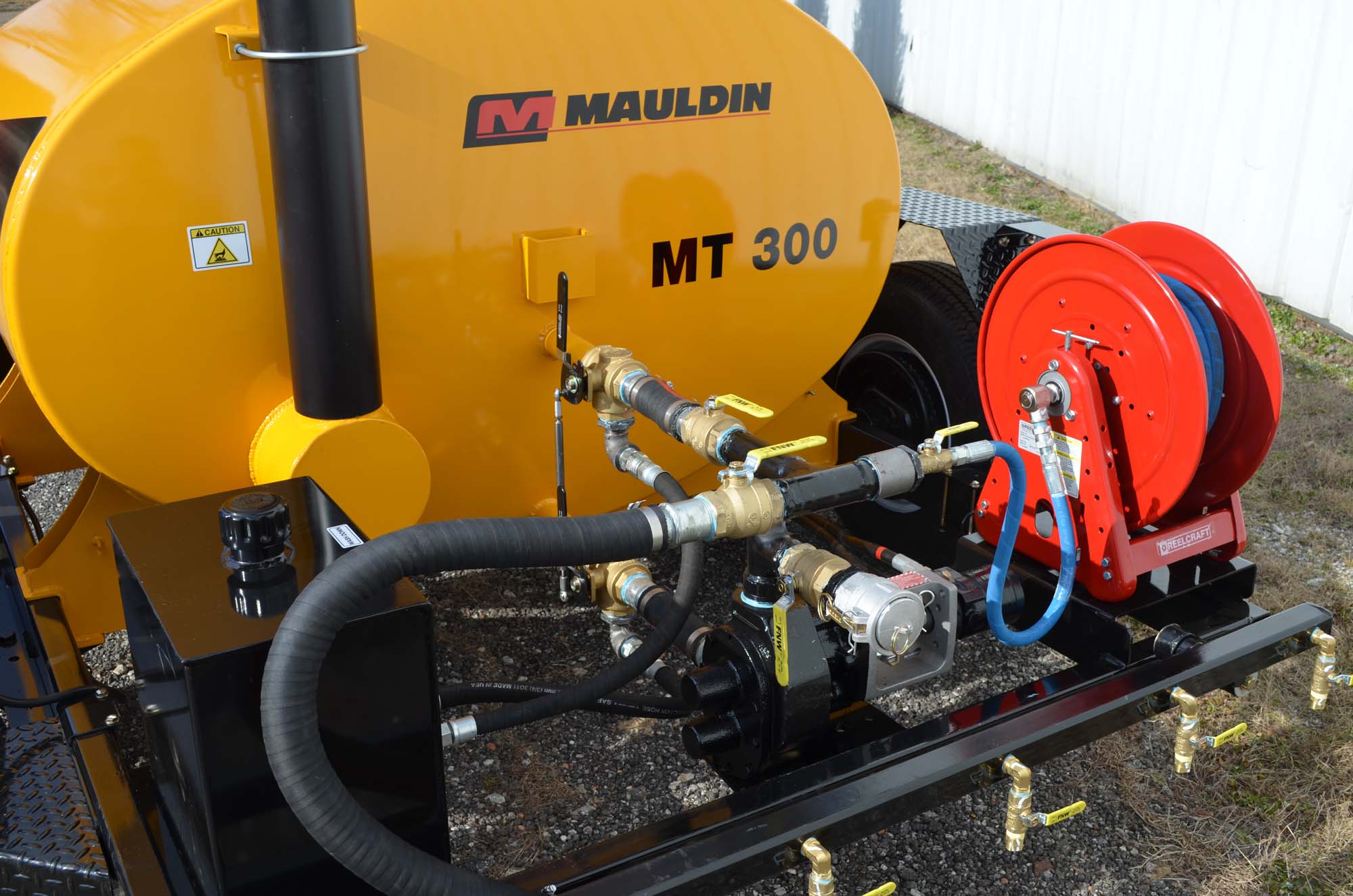

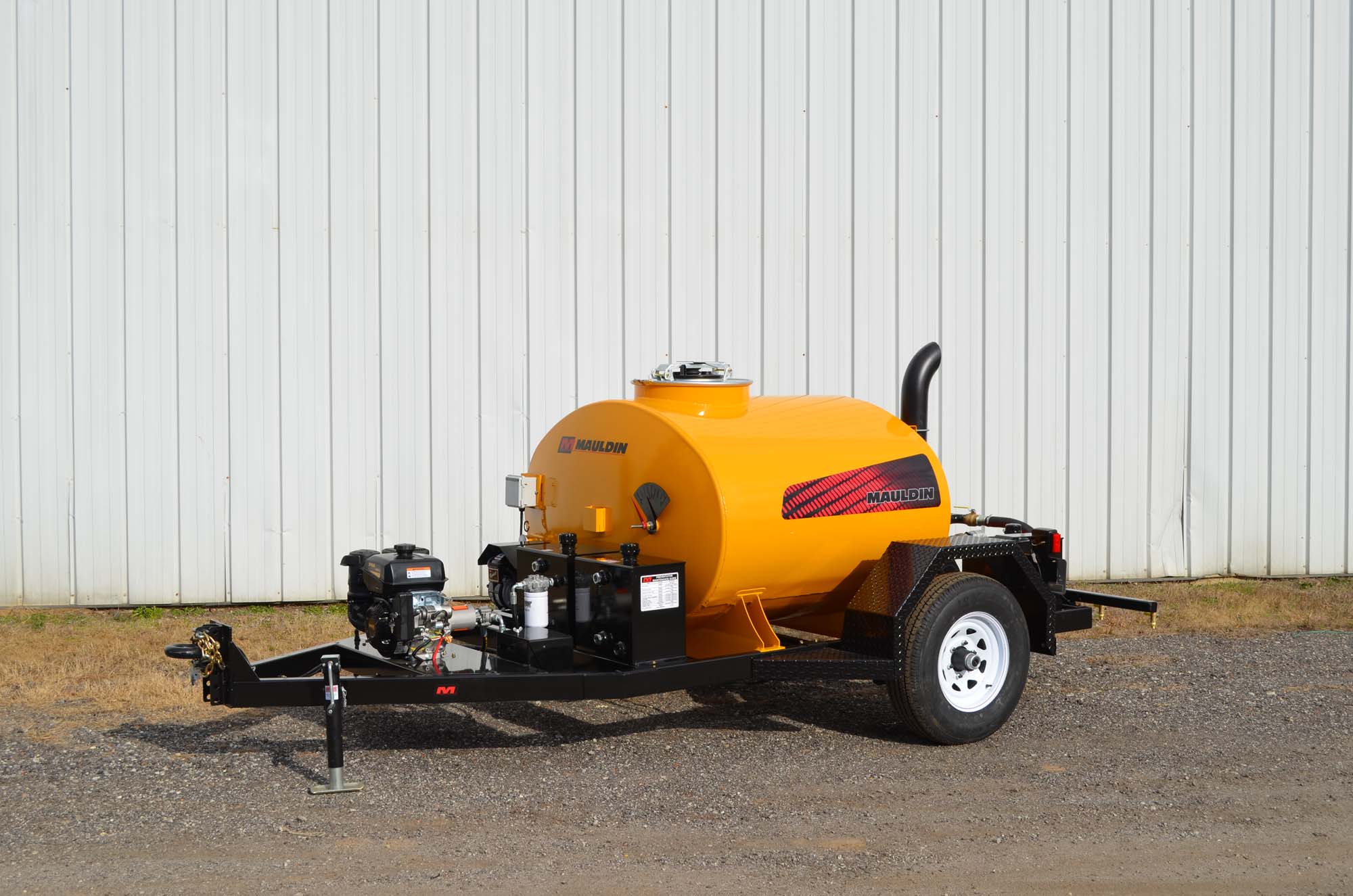

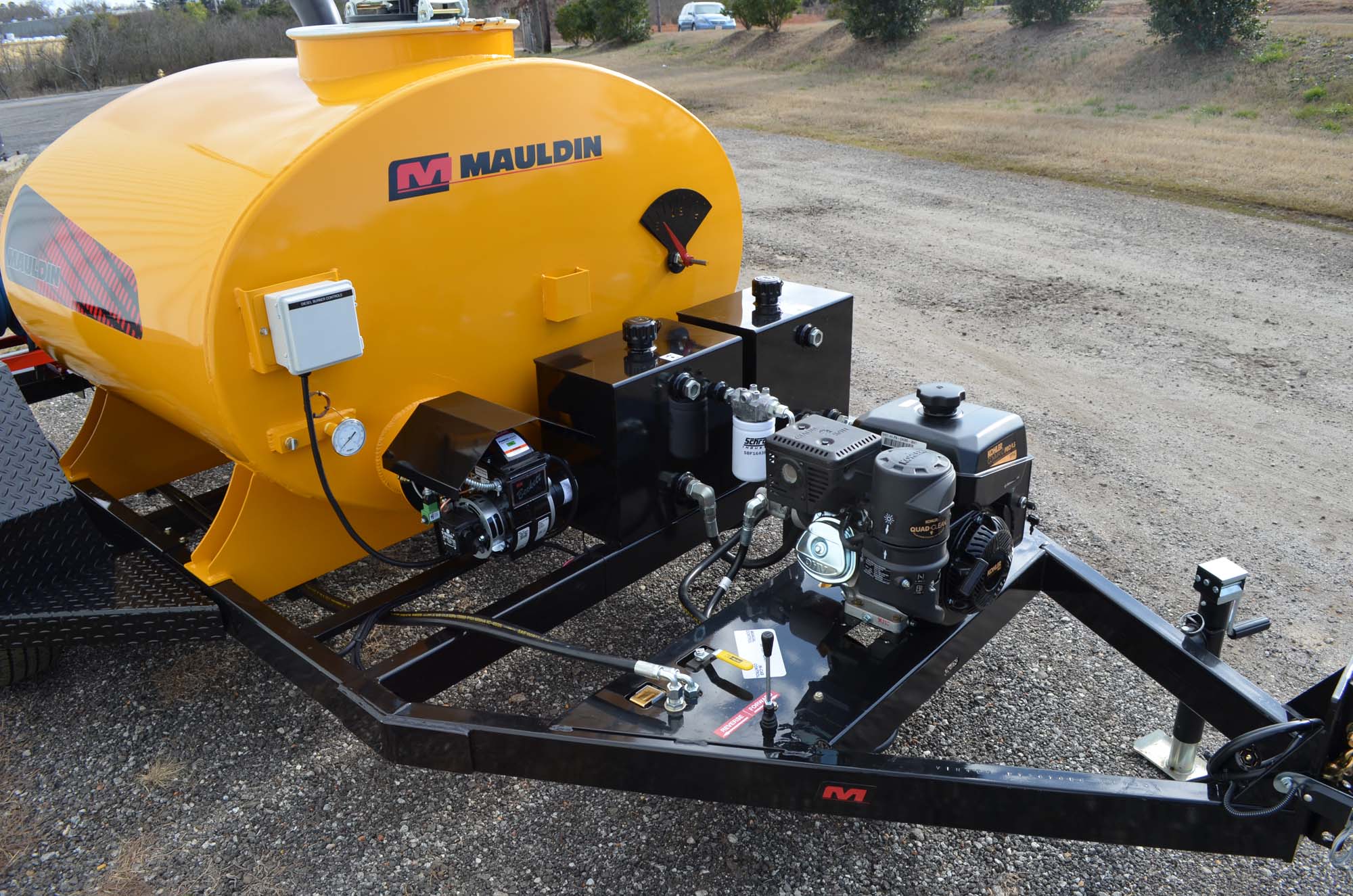

MT300 / 600
- 300 or 600 Gallon Tank Capacity
- Hydraulic-Driven, Reversible Asphalt Pump
- Dished and Flanged Heads for Superior Leak Protection
- Wash Down Solvent Tank
- 20″ Manhole
- 5′ Cold-Handle Hand Sprayer with 40′ Hose
- Electronic Break-Away Braking System
- Triple-Pass, Single Flue with Choice of Heating:
- Thermostat-Controlled Diesel Burner
- Propane
- 8′ Non-Recirculating Spray Bar with In-Cab Control*
Dimensions
Overall Length: 169″, 1430 cm
Overall Width: 96.5″, 1245 cm
Loading Height: 62″, 158 cm | 70″, 178 cm
Tires: 225/75R15
Brakes: Electric, Single Axle
Performance Data
Asphalt Pump 8 GPM 1 30 LPM, Reversible Hydraulic Driven
Heating, Type Propane, Twin Burners
Heating Flue Diameter: 8″ / 20cm
Single Flue Tube with Triple Tank Pass
Hand Spray Wand Single Nozzle
Hand Spray Hose 40 Feet/ 12 Meters
Hand Spray Hose Reel Manual Wind
Engine
Fuel Type Gasoline
Power 9.5 HP (SAE/1394) | 7Kw
Type and Cooling 1 Cylinder – Electric Start, Air Cooled
Fluid Capacities
Solvent Tank 5 Gal. 1 19 L
Hydraulic Tank 5 Gal. 19 L
Diesel Tank, (if equipped) 5 Gal, 1 19 L
